Multi-Wavelength LED Illuminator

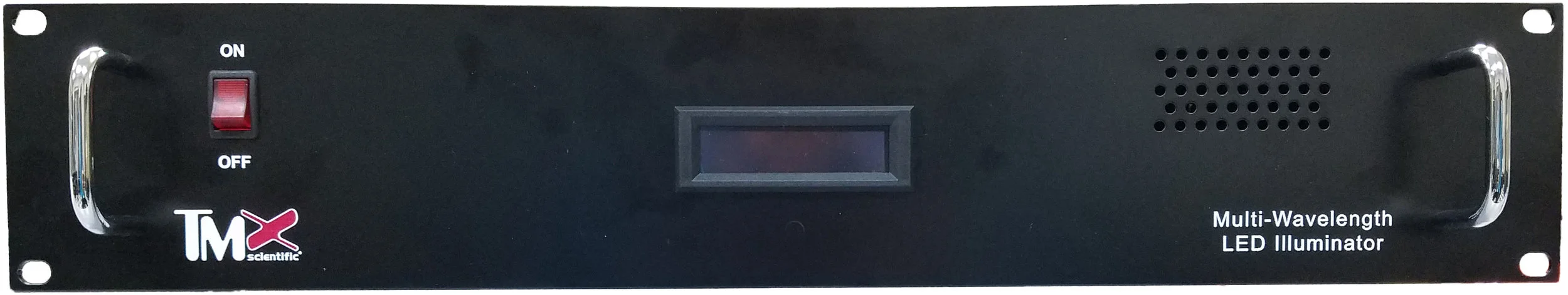

The Multi-Wavelength LED Illuminator (MWL) is a 2U rack-mounted enclosure that can automatically switch between 12 different wavelengths of light. The light is generated by high-power LED emitters and delivered through a single SMA optical fiber port on the back of the enclosure. The MWL is easy to use - just select the desired wavelength and light intensity in the software interface, and the selections will appear on the enclosure OLED display. The MWL provides a diverse range of LED light to the T°Imager® Measurement Head, making it possible to conveniently measure a variety of samples and surface materials. It can also be used for both quasi-steady-state and transient measurements.

Customization   |   Benefits   |   Available Wavelengths

Multi-LED Illuminator

The Multi-LED Illuminator (MLI) is a 2U rack-mounted enclosure that contains up to 16 different high-power LED emitters. The MLI provides a range of wavelengths of light to the T°Imager Measurement Head, making it possible to achieve excellent results for a variety of samples and surface materials. Although the MLI does not have a monochromator’s fine-tuning capability, it provides a diverse range of light wavelengths, enabling users to optimize measurement results based on their test setup. The MLI can be used with T°Imager for both steady-state and transient measurements. Each LED has its own SMA connector and delivers its light to the T°Imager Measurement Head light port via an optical fiber.

Customization   |   Benefits   |   Available Wavelengths



LED Illuminator Models




MWL-112

Automated multi-wavelength enclosure with up to 12 LED emitters.




MDL-12

Multi-LED enclosure with up to 12 LED emitters




MDL-16

Multi-LED enclosure with up to 16 LED emitters.



Customizable

Choose up to twelve (12) different LED wavelengths for the MWL and up to sixteen (16) different, high powered LED emitters for the MLI, ranging from 365 nm to 850 nm. Since the emitters are housed in a rack-mounted enclosure, they can be upgraded in the future to replace existing wavelengths or add new wavelengths as they become available.


Benefits

  • Very high light intensity
  • Steady-state or pulsed for transient measurements
  • Customizable LED emitters: near-UV to near-IR wavelength range
  • Modular design installs in T°Imager System Rack Station
  • Light delivered by optical fiber, coupled by a secure SMA connector

Available Wavelengths

365 nm
375 nm
385 nm
395 nm
405 nm
420 nm
450 nm
455 nm
470 nm
490 nm
505 nm
530 nm
565 nm
590 nm
617 nm
625 nm
660 nm
730 nm
780 nm
810 nm
850 nm
