Transient Package

The basic T°Imager® system generates steady-state thermal imaging of active microelectronic devices, revealing a basic understanding of the device’s thermal characteristics. By adding the Transient Package to your T°Imager® system, you can capture thermal maps of the device under test (DUT) during its heating and cooling cycles, revealing a more comprehensive picture of its thermal behavior during electrical activation.

The TMX Scientific Transient Package is a turn-key, modular solution for T°Imager® systems that captures the effects of heat dissipation beyond steady-state conditions. The fully integrated system installs in the T°Imager System Rack Station and includes all of the necessary equipment to generate a synchronized device/illumination signal with MHz resolution, according to a user-defined profile. The Transient Package’s modular design even enables a user to add transient capability to an existing T°Imager® system with the addition of a few rack-mounted enclosures.

Select one of TMX Scientific’s specially formulated, high-power LED illumination subsystems to synchronize with the DUT’s activation cycle as part of the T°Imager® Transient Package. The Single-LED Illuminator provides excellent pulsing frequency for test samples that are comprised of the same surface material or surface materials with very similar properties. The Multi-LED Illuminator provides an excellent wavelength range as well as pulsing frequency for versatile measurement profiles.

Activation   |   Benefits   |   Applications





Transient Activation

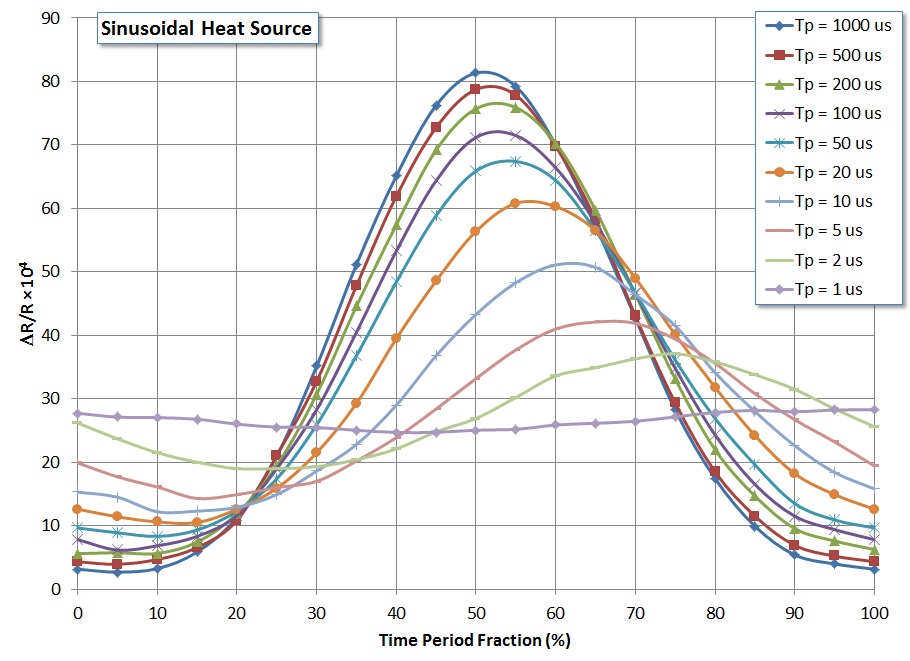

The T°Imager® interface with the Transient Package upgrade enables the user to define the transient activation parameters and define the points in time at which the system captures the temperature field within the field of view. The delivered system contains predefined activation functions (sine, square, and ramp) with fields for user input. The program also allows the user to load a user-defined arbitrary function to imitate the device’s actual behavior in a specific application. The Transient Package hardware can capture the thermal transients of a device at a frequency of up to 1 MHz (1 microsecond).

Single/Multi-Point Scan

The T°Imager® is capable of collecting data at a single instance or multiple instances in time during the activation cycle of a microelectronic device.


Benefits

  • Generate transient temperature maps
  • Select from predefined activation functions or load a user-defined arbitrary function
  • Single point or multi-point scan
  • Turn-key solution: includes all necessary equipment for synchronized device and illumination trigger
  • Modular design: installs in T°Imager® System Rack Station
  • Easily add to existing T°Imager® system

Applications

  • Quantify device turn-on regime
  • Capture device rise time
  • Characterize device transients
  • Map thermal burnout
